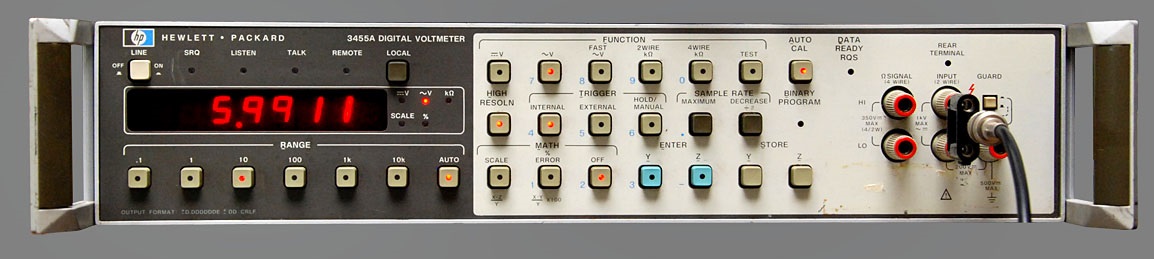

¶ HP 3455A 5 or 6 digit voltmeter
¶ Specifications
- Autoranging voltmeter and resistance (2/4 wire)
- DC Voltage: 100nV to 1000V in 5 ranges
- DC input impedance > 10GΩ
- AC Voltage: 1µV to 700V in 5 ranges
- Resistance: 1mΩ to 1GΩ
- Digits 3 1/2, 4 1/2, 5 1/2, or 6 1/2 (depending on integration time (in power line cycles)
¶ Manuals
For detailed specifications see: 3455a_dvm_datasheet.pdf
For detailed operating instructions see 9018-05892.pdf
For a more abbreviated set of instructions see hp_3455a_operating.pdf
¶ Basic Operating Instructions
This is used basically like a big multimeter. For 2 wire measurements the probes are connected to the Volts/2WΩ/4WΩ connectors; red at the top, black at the bottom. (For 4 wire resistance measurements the additional sense probes are connected to the sense terminals immediately to the left.
The function buttons for DC volts, AC volts, 2 wire resistance, and 4 wire resistance will be the most often used.
This meter belongs to Steve Hodges and is on loan to the Artifactory; please do not remove it from the space or try to repair it without first checking with him.
