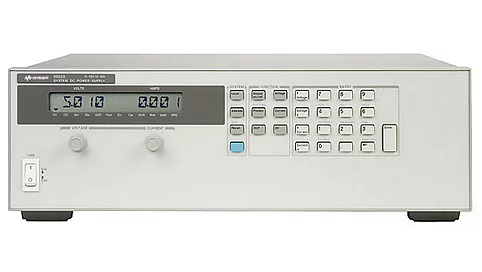

¶ Agilent 6654A Bench Power Supply
¶ Specifications
- Output voltage: 0—60 V DC
- Output current: 0-9A
- Maximum output power: 500W
- Load regulation (0-100% load): 4mV / 0.5mA
- Ripple and noise: 500uV RMS
- Voltmeter accuracy: 40mV
- Ammeter accuracy: 7mA
¶ Manuals
For Specifications see: 5990-9305.pdf
For an Operating Guide see: 9018-01422.pdf
For a Service Manual see: 9018-01114.pdf
¶ Basic Operating Instructions
- Apply power
- Press VOLTAGE
- Key in desired voltage on keypad and press ENTER
- Press CURRENT
- Key in desired current limit and press ENTER
- Connect load to terminals
- Press OUTPUT ON/OFF
- Display shows output voltage and current
If something goes wrong, press OUTPUT ON/OFF to disconnect the load.
I STRONGLY recommend you set the current limit to something safe.
This power supply is very versatile and can do a stack of things including act as a load. If you really want to know how to make it sing and dance, RTFM.
This power supply belongs to Steve Hodges and is on loan to the Artifactory; please do not remove it from the space or try to repair it without first checking with him. Also beware that it weighs about 20kg.
